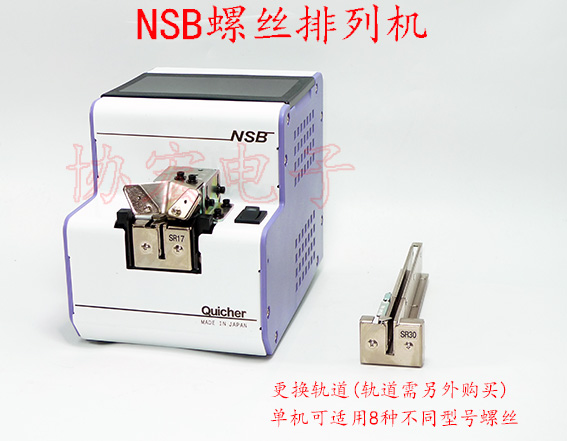

Quicher敏捷自動螺絲供給器是可替換不同尺寸路軌的螺絲機。
QUICHER螺絲機通過更換不同的路軌：可適用于多種不同型號的螺絲。
NSB系列可更換為：NSB-10 NSB-12 NSB-14 NSB-17 NSB-20 NSB-23 NSB-26 NSB-30 NSB-35 NSB-40 NSB-50。
也可根據螺絲的不同而調整機器軌道的傾斜度。以達到排列螺絲出螺絲的速度！
QUICHER螺絲機可就用于市場上的標準電批批頭：可用于各種全自動半自動電批、風批。

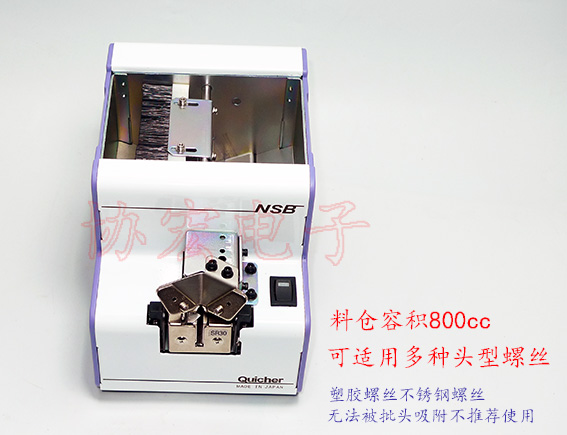

QUICHER螺絲機具有大容量的螺絲儲存箱：比其它螺絲機多出30%的螺絲貯存量，放一次螺絲，可使用更長的時間。可大大節省時間，提高工作效率！。
QUICHER螺絲機可適用于特殊型號的螺絲，如：帶墊片螺絲，帶彈片螺絲，自攻螺絲，平頭螺絲，超薄螺絲等。大型號可達M5.0。裝備有超負荷的反轉保護電路。保護機器不被損害。
QUICHER螺絲機具有較長的路軌，可同時承載較多螺絲，速度較同類產品快30%
QUICHER螺絲機路軌采用無磁鋼軌，平坦光滑，不粘螺釘，大大減少螺絲阻塞，提高了工作效率！
|
機種
|
螺桿直徑（ mm ）
|
螺帽直徑（ mm ）
|
螺帽厚度（ mm ）
|
螺絲長度（ mm ）
|
導軌型號
|
|
NSB-14
|
M1.4
|
1.6-9
|
0.35 以上
|
2.0-10
|
SR-14
|
|
NSB-17
|
M1.7
|
1.9-9
|
2.3-10
|
SR-17
|
|
NSB-20
|
M2.0
|
2.2-9
|
2.6-20
|
SR-20
|
|
NSB-23
|
M2.3
|
2.5-9
|
2.9-20
|
SR-23
|
|
NSB-26
|
M2.6
|
2.8-9
|
3.2-20
|
SR-26
|
|
NSB-30
|
M3.0
|
3.2-9
|
3.6-20
|
SR-30
|
|
NSB-35
|
M3.5
|
3.7-9
|
4.0-20
|
SR-35
|
|
NSB-40
|
M4.0
|
4.2-9
|
4.6-20
|
SR-40
|
|
NSB-45
|
M4.5
|
4.8-9
|
5.0-20
|
SR-45
|
|
NSB-50
|
M5.0
|
5.2-9
|
6.0-20
|
SR-50
|
Quicher agile automatic screw feeder is a screw machine that can replace different sizes of rails.
Quicher screw machine can be applied to many different types of screws by changing different rails.
NSB series can be replaced with nsb-10 nsb-12 nsb-14 nsb-17 nsb-20 nsb-23 nsb-26 nsb-30 nsb-35 nsb-40 nsb-50.
The inclination of machine track can also be adjusted according to different screws. To achieve the speed of arranging screws out of the screw!
Quicher screw machine can be used for the standard electric screwdriver head on the market: it can be used for all kinds of fully automatic semi-automatic electric screwdriver and wind screwdriver.
Quicher screw machine has a large capacity screw storage box: 30% more screw storage than other screw machines. It can be used for a longer time after putting screws once. It can save time and improve work efficiency!.
Quicher screw machine can be used for special types of screws, such as: screws with gasket, screws with spring plate, self tapping screws, flat head screws, ultra-thin screws, etc. The maximum model can reach M5.0. Equipped with overload reverse protection circuit. Protect the machine from damage.
The Quicher screw machine has a longer track, which can carry more screws at the same time, and the speed is 30% faster than the similar products
The rail of Quicher screw machine is made of non-magnetic rail, which is flat and smooth without screws sticking. It greatly reduces screw blocking and improves working efficiency!
