由于翻譯水平有限，僅供參考，詳細請關注：官方網站http:///c1256bcf0020be5f/Contents-Frame/3040dd99ca4df2a0c12571f50023e832）
Magnification*)放大倍率： 30 x / 40 x
Field of view at 1000 m *) 1000米視野：40 m / 30 m
Exitpupil出瞳直徑： 2.1 mm
Eyerelief 出瞳距離：18 mm
Dioptre-setting屈光度調節范圍：- 4 to + 4 dpt
Length長7.3 in. 英寸
Width寬2.6 in. 英寸
Height 高4.2 in. 英寸
Tightness防水 Water resistant
Image sensor圖像傳感器：1/1,8 " CCD with 4 MPx(ca. 9 mm 對角線diagonal)
Width-to-height ratio 寬高比例：4 : 3
Focal length *) 焦距：230 mm / 300 mm
Equals field of view with 35 mm film *)相當于35mm影片視野 ：ca. 1120 mm / 1460 mm
Shutter speed 快門速度：1/200 sec to 1/8 sec
Shutter delay 快門延遲時間：max. 0.9 sec
F-stop (photometr.) 6.4
Exposure metering曝光測定：Centre-weigthed 中央
Sensitivity ：ISO 50 / 100 / 200 / 400 / 800(automatic and manuell)
Exposure compensation 曝光補償：EV -2 to +2 (1/3 steps)
Continuous shooting 連拍：up to 5 pictures 5張
White balance 白平衡：automatic and manual 自動手動
Storage 存儲介質：SD-Card
File format 文件格式：TIFF, JPEG (3 compressions)
Power supply camera電源供給：2.4 Volt 2 x AA (LR06) recharcheable or power supply
Power supply remote control 遙控裝置電源供給：2.4 Volt 2 x AAA (LR03)
Display 顯示器：2.0 " LCDca. 154,000 Pixel
Connections 連接：USB 1.1； Video out； Power supply ；
Order-no. 訂購編號：52 80 31
Product Details 產品詳細介紹

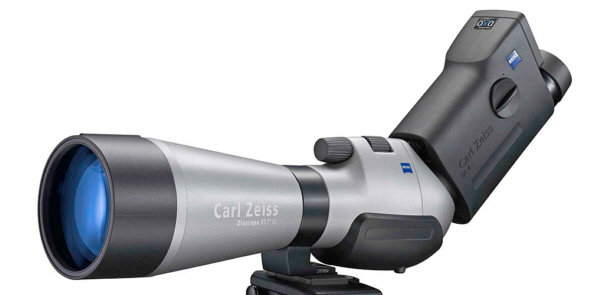

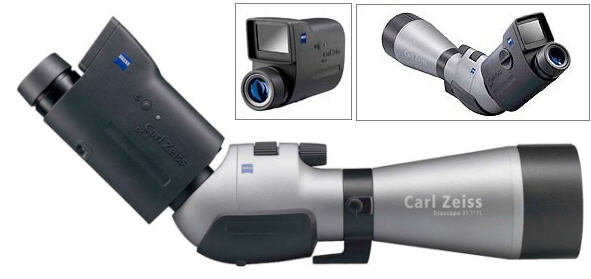

Zeiss Camera Eyepiece DC4 For Diascope Spotting Scopes by Carl Zeiss Observe and Capture Digital Pictures at the Same Time! 蔡司照相機目鏡，由蔡司專為觀鳥鏡系列制造的可同時捕捉數字式圖片的設備！
The Camera-Eyepiece DC4 for all ZEISS Diascope spotting scopes unites both features in one device and defines "Digiscoping" - digital photography through a spotting scope - in a new, fascinatingly easy manner:蔡司照相機目鏡適用于蔡司全系列觀鳥鏡
Observe and capture digital images. Simultaneously!同時觀測并捕獲數字影像！
No additional camera and adapter needed.不需要添加額外的鏡頭轉接設備。
No time lost aligning camera and eyepiece.不再需要去對準相機和目鏡。
Designed for the ZEISS Diascope spotting scope, the innovative DC4 camera eyepiece is expected to be available in early 2007, as a limited edition.由蔡司為觀鳥鏡設計的照相機式目鏡，在2007年初作為限量版發售！
Eyepiece 目鏡
High-quality optical observation eyepiece : 40x (with Diascope 85 T* FL) or 30 x (with 65 T* FL) magnification.高質量光學觀測目鏡：40x（用于85 T* FL機身）或 30 x（用于65 T* FL機身）
Inscribed reticle for framing image in the eyepeice or on the camera display.在目鏡或顯示器上裝有圖像成型的內接十字光標線
Constant image monitoring in the eyepiece, even during image capture.在目鏡上監測連續的圖像，在期間捕捉圖像
Rubber-armored, water resistant housing for use in almost all weather conditions.外覆橡膠防水，可經受任意風吹雨打。
Push/pull eyecups for eyeglass wearers and non-eyeglass wearers.可拉進拉出眼罩，方便戴眼鏡及不戴眼鏡人士使用。
Camera 照相機
Advanced 4 MPx camera and innovative signal processing with DxO image software for outstanding images which can be enlarged to 8x10.高級4MPx相機，配有DxO圖片處理軟件,圖片可以擴大至8x10
F 6.4 and long focal length for impressive pictures, even of far-away wildlife scenes.F 6.4以及長焦距,適合特殊圖片的拍攝,特別是遠距離的野外拍攝
Large 1.8" display for image review and menu operations. 1.8"英寸大屏顯示圖像及菜單操作
Hands-off image capture via remote control for steady images.經過遙控裝置可捕獲平穩的圖像。
Camera setup for ISO, white balance and many other camera parameters via remote control.經過操控裝置可設置相機的ISO值，白平衡和許多其它的相機參數。
SD card to store images.使用SD卡存儲
USB and Video ports to connect to a computer or TV.USB和錄像端口可連接至計算機或電視
Powered by standard batteries, rechargeable batteries or plug in power adaptor.電源可為標準電池，或可充電電池，或者接入電源適配器
The DC4 camera eyepiece is attached to the spotting scope instead of a standard observation eyepiece.照相機目鏡可作為附加件用于觀鳥鏡，代替標準的目鏡使用。
First focus the reticle with the image field boundary by turning the eyecup. This personal setting must only be performed once.首先在圖像的邊界對準十字線旋轉眼杯。這個個人設置可只設置一次。
The spotting scope is used to focus the image as usual. The focus is evaluated and the image section selected through the eyepiece or on the display.通常我們使用目鏡去觀測圖像，可以通過屏幕挑選圖像或者顯示
The picture is taken vibration-free by pressing a button on the remote control. Without disturbing you can continue looking through the eyepiece to the image.
該圖片是采取無振動按下一個按鈕，按遙控器上的控制。而不干擾你可以繼續期待透過接目鏡到圖象。
|
