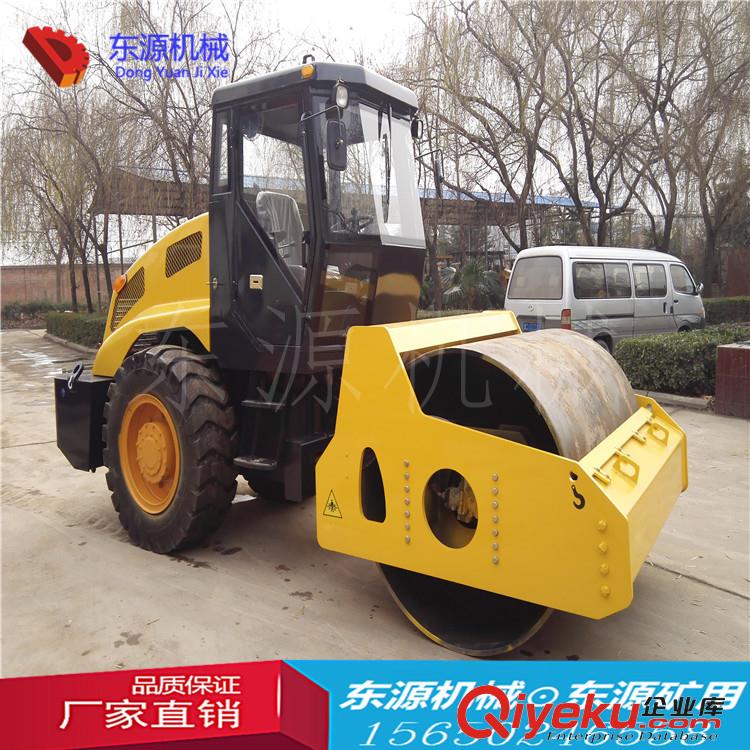

YZD8.0D(標配駕駛室)
本產品是中型液壓振動壓路機，主要適用于各種非粘性土壤、沙土、礫石、砂石混合料、穩定土等建筑材料的壓實工作。尤其在小區道路、鄉間公路、地下車庫、操場以及各種溝槽回填土方等小型工程壓實作業中最為經濟實用。
This product is middle type hydraulic vibratory roller. It is mainly used for compacting various construction materials such as non-cohesive soil, sandy soil, graves, macadam aggregate mixtures. Especially suitable for compact community road, village highway, underground garage, playground and all kinds of groove earthwork backfill.
主要特點MAIN FEATURES
1.液壓振動，液壓轉向，液力驅動。發動機采用國內知名4缸渦輪增壓水冷發動機，動力強勁性能穩定。
2.傳動結構采用動力換擋，驅動直接高效。液力換擋沒有離合器齒輪箱，操作方便。
3.后橋選用輪邊減速橋，扭矩大，驅動力強。三倍于普通機械后橋的耐用性。
4.設有高速轉場模式，轉換工作場地免用拖車省時省力。剎車系統采用碟式氣剎，更穩定可靠。
1. Hydraulic vibrating and steering, hydrotransmitter drive. Adopts 4 cylinder water-cooling turbo diesel engine, excellent power output.
2. Adopts hydrotransmitter, direct and efficient, no clutch and gearbox, easy to operate
3. Adopts wheel-sided reducer , torque is very powerful. three times as durable as mechanical .
4. It has high speed mode, save time and to change work place. Adopts air pressure oil brake, more reliably and stably.
主要技術參數：MAIN PERFORMANCE PARAMETRES
|
型號 |
MODEL |
|
YZD8.0D |
|
工作質量 |
Operating Mass |
kg |
8000 |
|
激振力 |
Exciting Force |
kn |
110 |
|
振動頻率 |
Vibration Frequency |
Hz |
40 |
|
振動輪寬度/直徑 |
Drum Width/Diameter |
mm |
1700/1230 |
|
靜線載荷（前輪） |
Static Linear Load(Front) |
N/cm |
240 |
|
行走速度 |
Travel Speed |
km/h |
2.5~15 |
|
爬坡能力 |
Gradeability |
% |
30 |
|
最小轉彎半徑 |
Minimum turning radius |
mm |
7800 |
|
軸距 |
Wheelbase |
mm |
2600 |
|
最小離地間隙 |
Min. ground clearance |
mm |
330 |
|
電瓶電壓 |
Battery Voltage |
V |
24 |
|
柴油箱/液壓油箱容量 |
Diesel/ Hydraulic tank capacity |
L |
110/110 |
|
柴油機型號 |
Diesel Model |
|
ZH4102ZY |
|
柴油機功率 |
Diesel Power |
kw |
60 |
|
外形尺寸 |
Dimension(L×W×H) |
mm |
4900x1900x2660 |
