直流電源濾波器
DC
power Filters
產品特點 Features
◆針對直流電源線傳播的電磁干擾而設計, 優異的共模、差模干擾抑制特性。
The design for EMI
conducted by DC power lines, excellent common and differential mode
attenuation.
u可按不同性能,工作電流,電壓,外形尺寸和端接方式等要求定制
Customization design for
different requirements such as performance,rated current,rated viltage,shape
dimention and termination methods
使用場合 Application
◆ 用于一次電源的直流輸出側和二次電源的輸入輸出側
For DC output sides of
primary power supplies, input and output sides of secondary power supplies
技術參數 Technical Data
額定電壓 Rated Voltage
|
100VDC
|
工作頻率 Operating Frequency
|
DC
|
耐壓試驗Test Voltage
|
線—線 L―L
|
200VDC
|
1min
|
線—地 L―G
|
500VDC
|
1min
|
氣候類別Climatic category
|
25/85/21
|
型號
modle
|
額定電流
Rated Current
(A)
|
電路類型
Electrical
Schematics
|
端接方式
Termination methods
|
輸入 Input
|
輸出 Output
|
FDBB-3W
|
3
|
B
|
18號電源線
|
18號電源線
|
FDBC-6W
|
6
|
18號電源線
|
18號電源線
|
FDBD-10L
|
10
|
焊片
|
焊片
|
FDBD-20S
|
20
|
螺栓
|
螺栓
|
FDTB-3W
|
3
|
T
|
18號電源線
|
18號電源線
|
FDTB-6W
|
6
|
18號電源線
|
18號電源線
|
FDTD-10L
|
10
|
焊片
|
焊片
|

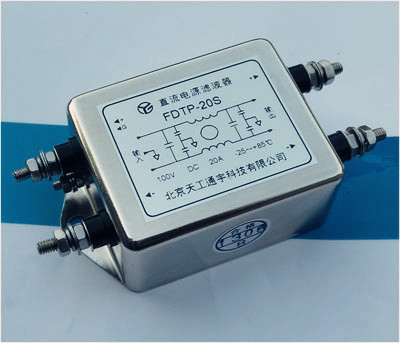

FDTP-20S
|
20
|
螺栓
|
螺栓
|
FDUB-1W
|
1
|
U
|
18號電源線
|
18號電源線
|
FDUB-3W
|
3
|
18號電源線
|
18號電源線
|
FDUC-6W
|
6
|
18號電源線
|
18號電源線
|
FDUD-6L
|
6
|
焊片
|
焊片
|
FDUP-10L
|
10
|
焊片
|
焊片
|
FDUE-20S
|
20
|
螺栓
|
螺栓
|
FDUS-20S
|
20
|
螺栓
|
螺栓
|
FDUF-30S
|
30
|
U
|
螺栓
|
螺栓
|
FDUG-50S
|
50
|
螺栓
|
螺栓
|
FDUH-100S
|
100
|
螺栓
|
螺栓
|
FDFE-6L
|
6
|
F
|
焊片
|
焊片
|
FDFE-10L
|
10
|
焊片
|
焊片
|
FDFF-20S
|
20
|
螺栓
|
螺栓
|
|
|
|
|
|
|
|
電路類型 Electrical schematics

外形尺寸 Shape dimension
請百度北京天工通宇科技有限公司,登錄公司官網查看
