Description
The NP2302C uses advanced trench technology
to provide excellent R DS(ON) , low gate charge and high
density cell Design for ultra low on-resistance. This
device is suitable for use as a load switch or in PWM
applications.
General Features
? V DS =20V,I D =2.8A
R DS(ON) (Typ.)=78m? @V GS =1.8V
R DS(ON) (Typ.)=44m? @V GS =2.5V
R DS(ON) (Typ.)=34m? @V GS =4.5V
? High power and current handing capability
? Lead free product is acquired
? Surface mount package
Application
? PWM applications
? Load switch

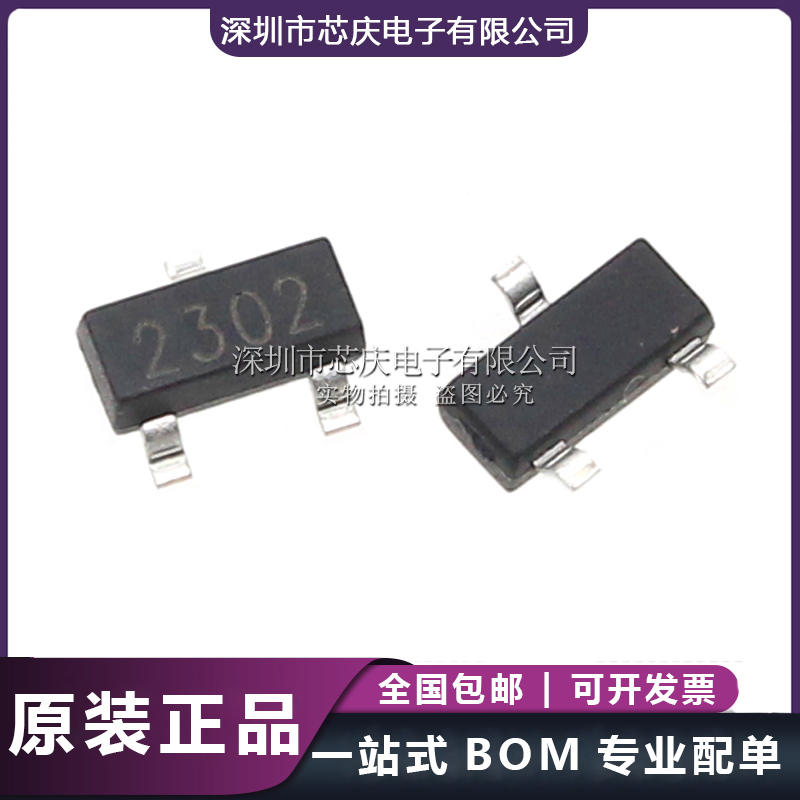

Package
? SOT23-B
